Description of The Product
45MM OD rare earth PMDC motor, totally enclosed, used in occasions which require motors with low noise.

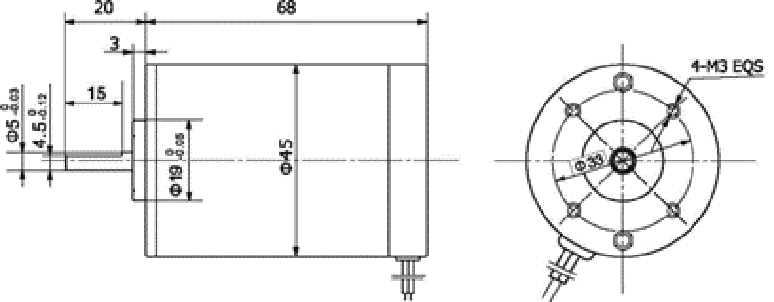

Dimensions
Technical Data
TYPE | Rated voltage VDC | No-load speed r/min | No-load current A | Rated speed r/min | Rated torque mN.m | Output Power W | Rated current A | Stall torque mN.m | Stall current A |
45ZYN68-2420 | 24 | 2000 | 0.18 | 1600 | 42 | 7 | 0.5 | 220 | 2.0 |
45ZYN68-2430 | 24 | 3000 | 0.25 | 2400 | 65 | 16 | 1.2 | 300 | 4.4 |
45ZYN68-2440 | 24 | 4000 | 0.30 | 3200 | 90 | 30 | 2.0 | 375 | 6.8 |
